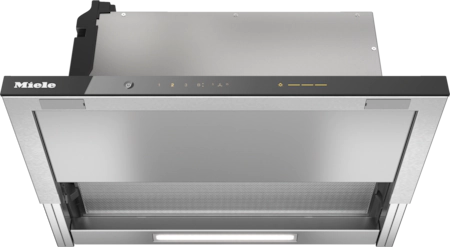

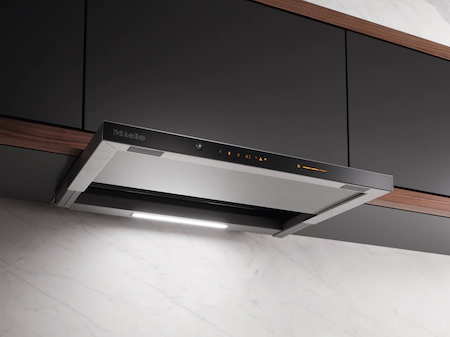

Miele DAS4630 60cm Built In Extractor Hood

Product Code: DAS4630
GET 5% OFF
Auto-Applied At Checkout!
5% OFF WITH "
TAKE5
"
CLICK TO COPY

£925.00

Or 3 payments of £308.33 with
Monthly, Interest Free
Seen it cheaper?
In Stock
2 Year Warranty
Delivery From 3 - 7 Working Days*
Instalment plans available from
£308.33 per month
BUY NOW
Need help? Call us on 01622 541312
Google reviews Link

FREE UK Delivery

On all orders over £300
3 to 7 Working Days*
Express/Nominated Day Delivery Options Available on Selected Stock*
*Available delivery dates depend on postcode & stock availability.

Additional Services**

Installation from £40
Packaging Recycling from £5
Appliance Removal from £25
**Installation & Recycling services are available but depend on postcode.
recirculation-or-duct-out
Extraction Type
70 DB
Noise Rating
Energy Rating
yes
Smart Appliance
Overview
Specification
Detail

Miele
 DAS4630

  • Obsidian Black & Clean Steel Finish Miele Extractor Hood – 3+1 Intensive Speeds, Duct Out or Recirculation, Washable Filter, LED Lighting, Max 720m3/h Capacity, Energy Rating A+++ with a Noise Rating of Just 70dB(A).
  • Miele@Home – Make your life smart; connect up all your Miele appliances using your smart devices.
  • Stainless Steel (10-ply) Grease Filter – Can be cleaned in Dishwasher.
  • Miele CleanCover – Easy cleaning & Protects electrical components + motor.

Miele
Model DAS4630 Key Features

SPECIFICATION

CONSTRUCTION TYPE

Slimline cooker hood

OPERATING MODES

Type of air guideConvertible
Recirculation conversion kit (order separately)DUU 151
Active charcoal filter (order separately)DKFS 31-P
DKFS 31-R

DESIGN

ColourObsidian black

USER CONVENIENCE

Miele@home
Automatic function Con@ctivity
Electronic controls
Touch-on-glass controls
Programmable Booster level switch-off
Run-on time 5/15 min.
Grease filter saturation indicator
Grease filter saturation indicator programmable
Active charcoal filter saturation indicator programmable

EFFICIENCY AND SUSTAINABILITY

Energy efficiency class (A+++ to D)A+++
Annual energy consumption in kWh/year23.50
Fluid dynamic efficiency classA
Lighting efficiency classA
Grease filtering efficiency classA
PowerManagement system
ECO motor

CLEANING AND CARE

Easy-to-clean canopy interior – CleanCover

FILTER SYSTEM

Number of dishwasher-safe stainless steel grease filters (10-ply)1

LIGHTING

LED
Number x W1 x 3 W
Light intensity in Lx330 lx
Colour temperature in K3500 Kelvin
Dimmer function

FAN

Dual-action blower
DC motor

EXHAUST AIR

Air throughput in Level 1 (m³/h) according to EN 61591180
Air throughput in Level 2 (m³/h) according to EN 61591280
Air throughput in Level 3 (m³/h) according to EN 61591400
Air throughput in booster level 1 (m³/h)600
Air throughput in booster level 2 (m³/h)720
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-338
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-348
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-356
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-366
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-370
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1325
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1334
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1342
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1353
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-1357

RECIRCULATION

Air throughput in Level 1 (m³/h) according to EN 61591165
Air throughput in Level 2 (m³/h) according to EN 61591265
Air throughput in Level 3 (m³/h) according to EN 61591380
Air throughput in Booster level 1 (m³/h) according to EN 61591585
Air throughput in Booster level 2 (m³/h) according to EN 61591695
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-343
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-353
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-362
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-372
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-377
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1329
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1340
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1348
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1359
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-1363

SAFETY

Safety shut-off
Single-ply safety glass (ESG)

TECHNICAL DATA

Canopy width in in. (mm)596
Canopy height in in. (mm)36
Depth of hood canopy in in. (mm)273
Minimum height above electric hobs in mm450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm650
Net weight in kg12
Length of supply lead in m1.50
Standard plug fitted
Total rated load in kW0.16
Voltage in V230
Fuse rating in A10
Frequency in Hz50
Number of phases1

INSTALLATION NOTES

Extraction ducting connection at top
Diameter of extraction ducting connection in mm150

ACCESSORIES INCLUDED

Non-return flap

EAN

4002516496151

Discover the Miele DAS4630 Built In 60cm Extractor Hood in Obsidian Black & Clean Steel on KDH Electrical. Obsidian Black & Clean Steel Finish Miele Extractor Hood – 3+1 Intensive Speeds, Duct Out or Recirculation, Washable Filter, LED Lighting, Max 720m3/h Capacity, Energy Rating A+++ with a Noise Rating of Just 70dB(A). Miele@Home – Make your life smart; connect up all your Miele appliances using your smart devices. Stainless Steel (10-ply) Grease Filter – Can be cleaned in Dishwasher. Powerful – 720 m3/h on booster setting. Energy Efficient – LED Lighting. Miele CleanCover – Easy cleaning & Protects electrical components + motor.



STAINLESS STEEL GREASE FILTERS (10-LAYER) – Easy to use and effective against grease

Miele cooker hoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your hob from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discolouration occurs from being cleaned in the dishwasher and they retain their stunning appearance.



MIELE CLEANCOVER – Convenience and safety in detail

Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail – for your convenience and safety.



CON@CTIVITY (MIELE@HOME) – Automatic operation for intelligent fan control

Thanks to the Con@ctivity automatic function, the cooker hood can communicate with the hob below: the settings selected on the hob are transmitted to the controls on the cooker hood. Your Miele cooker hood then uses this data to automatically select the correct fan setting, ensuring the optimum room climate at all times. Communication is established between the cooker hood and hob via WiFi.



RUN-ON FUNCTION – Automatic fan run-on

The automatic fan run-on ensures the full extraction of steam and odours still in the air after cooking. The cooker hood can be set to switch off automatically after 5 or 15 minutes.



FILTER INDICATOR – Countdown time conveniently in view

If the grease or active charcoal filter of your Miele cooker hood is saturated, it is indicated by a lit-up red LED. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.



SMARTCONTROL – Elegant touch controls

With its colour and operating principle, the new, elegant Miele touch control perfectly matches Miele hobs. When switched off, only the On/Off icon is visible. Moreover, only the active settings are brightly illuminated; all others are dimmed. Basic functions, such as the run-on time, can be conveniently set at the touch of a finger. Perfect for use with Con@ctivity and the Miele app.



ECO MOTOR – The heart of every cooker hood

The heart and soul of every cooker hood is the motor. Some Miele cooker hoods feature ECO motors which work up to 50 % more economically than conventional motors. They are also very quiet but still as powerful as the motors in other Miele cooker hoods.



SAFETY SWITCH-OFF – Always on the safe side

The cooker hood will switch off automatically after 10 hours. This ensures maximum safety even in the event of operating errors.

Additional information

Weight12 kg
DimensionsH: 3.6 x W: 59.6 x D: 27.3
Brand

Miele

Colour

Black

Energy Rating

A+++

Extraction Type

Recirculation or Duct Out

Noise Level (dB)

70

Programmes

4

Smart Appliance

Yes

SKUDAS4630
GTIN4002516496151
