SPECIFICATION
CONSTRUCTION TYPE
| Built-under hood |
OPERATING MODES
| Type of air guide | Convertible |
| Active charcoal filter (order separately) | DKF18-P |
DESIGN
| Colour | Stainless steel |
USER CONVENIENCE
| Mechanical controls | |
| Slide switch | |
| Power levels (number without Booster level) | 3 |
EFFICIENCY AND SUSTAINABILITY
| Energy efficiency class (A+++ to D) | C |
| Annual energy consumption in kWh/year | 91.60 |
| Fluid dynamic efficiency class | D |
| Lighting efficiency class | A |
| Grease filtering efficiency class | A |
CLEANING CONVENIENCE
| Easy-to-clean canopy interior – CleanCover |
FILTER SYSTEM
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 2 |
LIGHTING
| LED | |
| NumberxW | 2 x 3 W |
| Light intensity in Lx | 330 lx |
| Colour temperature in K | 3000 Kelvin |
BLOWER
| Single-action blower | |
| AC motor |
EXTRACTION
| Air throughput in Level 1 (m³/h) according to EN 61591 | 275 |
| Air throughput in Level 2 (m³/h) according to EN 61591 | 315 |
| Air throughput in Level 3 (m³/h) according to EN 61591 | 355 |
| Air throughput in Booster level (m³/h) according to EN 61591 | 545 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 | 57.00 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 | 60.00 |
| Sound power in Level 3 (dB(A) re 1pW) according to EN 60704-3 | 64.00 |
| Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 | 74.00 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 | 43.00 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 | 47.00 |
| Sound pressure in Level 3 (dB(A) re 20µPa) according to EN 60704-2-13 | 50.00 |
| Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 60.00 |
RECIRCULATION
| Air throughput in Level 1 (m³/h) according to EN 61591 | 165 |
| Air throughput in Level 2 (m³/h) according to EN 61591 | 180 |
| Air throughput in Level 3 (m³/h) according to EN 61591 | 195 |
| Air throughput in Booster level (m³/h) according to EN 61591 | 220 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 | 71.00 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 | 72.00 |
| Sound power in Level 3 (dB(A) re 1pW) according to EN 60704-3 | 73.00 |
| Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 | 75.00 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 | 57.00 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 | 58.00 |
| Sound pressure in Level 3 (dB(A) re 20µPa) according to EN 60704-2-13 | 59.00 |
| Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 62.00 |
TECHNICAL DATA
| Canopy width in in. (mm) | 598 |
| Canopy height in in. (mm) | 125 |
| Depth of hood canopy in in. (mm) | 500 |
| Minimum height above electric hobs in mm | 450 |
| Minimum safety distance above gas hobs (max. 12.6kW total power, burner ≤ 4.5kW) in mm | 650 |
| Net weight in kg | 11.20 |
| Length of supply lead in m | 1.50 |
| Standard plug fitted | |
| Total rated load in kW | 0.24 |
| Voltage in V | 230 |
| Fuse rating in A | 10 |
| Frequency in Hz | 50 |
| Number of phases | 1 |
INSTALLATION NOTES
| Extraction ducting connection at top | |
| Diameter of extraction ducting connection in mm | 150 |
| Fitting template |

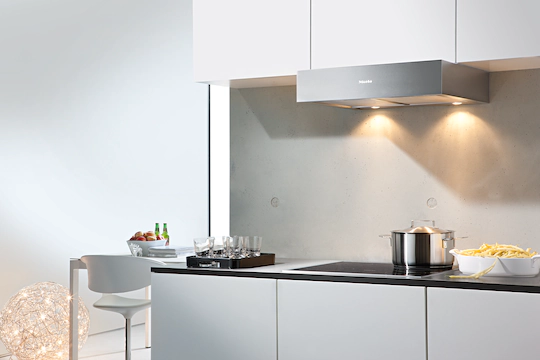

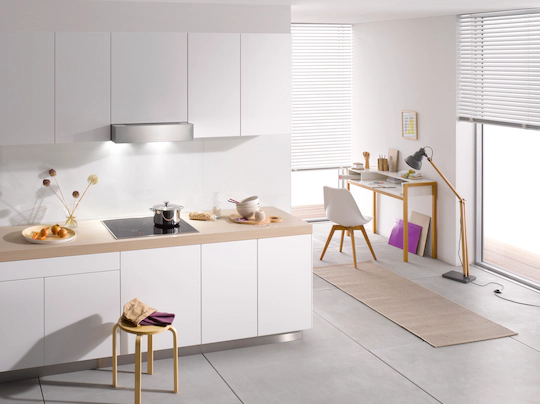

Miele DA1260 60cm Built Under Extractor Hood with Stainless Steel (10-ply) Grease Filter, Miele CleanCover & Energy Efficient LED Lighting
STAINLESS STEEL GREASE FILTERS (10-LAYER)
Easy to use and effective against grease
Miele cooker hoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your hob from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discolouration occurs from being cleaned in the dishwasher and they retain their stunning appearance.
MIELE CLEANCOVER
Convenience and safety in detail
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail – for your convenience and safety.
| Dimensions | H: 12.5 x W: 59.8 x D: 50 |
|---|---|
| Brand | Miele |
| Colour | Stainless Steel |
| Energy Rating | C |
| Extraction Type | Recirculation or Duct Out |
| Noise Level (dB) | 71 |
| Smart Appliance | No |
| SKU | DA1260 |
| GTIN | 4002515792186 |
