SPECIFICATION
CONSTRUCTION TYPE
| Downdraft extractor system |
OPERATING MODES
| Type of air guide | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUU 600 |
| Active charcoal filter (order separately) | DKF 30-P DKF 30-R |
DESIGN
| Colour | Black |
| Edge extraction |
USER CONVENIENCE
| Miele@home | |
| Automatic function Con@ctivity | |
| Electronic controls | |
| Touch-on-glass controls | |
| Programmable Booster level switch-off | |
| Run-on time 5/15 min. | |
| Grease filter saturation indicator | |
| Grease filter saturation indicator programmable | |
| Active charcoal filter saturation indicator programmable | |
| Motor-operated cooker hoods |
EFFICIENCY AND SUSTAINABILITY
| Energy efficiency class (A+++ to D) | A |
| Annual energy consumption in kWh/year | 41.60 |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | B |
| PowerManagement system | |
| ECO motor |
CLEANING AND CARE
| Easy-to-clean canopy interior – CleanCover |
FILTER SYSTEM
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 2 |
LIGHTING
| LED | |
| Number x W | 1 x 11,2 W |
| Light intensity in Lx | 400 lx |
| Colour temperature in K | 3500 Kelvin |
| Dimmer function |
FAN
| Dual-action blower | |
| DC motor |
EXHAUST AIR
| Air throughput in Level 1 (m³/h) according to EN 61591 | 200 |
| Air throughput in Level 2 (m³/h) according to EN 61591 | 340 |
| Air throughput in Level 3 (m³/h) according to EN 61591 | 440 |
| Air throughput in booster level 1 (m³/h) | 600 |
| Air throughput in booster level 2 (m³/h) | 640 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 | 44 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 | 57 |
| Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 | 62 |
| Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 | 70 |
| Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-3 | 72 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 | 30 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 | 43 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 | 49 |
| Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 56 |
| Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 58 |
RECIRCULATION
| Air throughput in Level 1 (m³/h) according to EN 61591 | 160 |
| Air throughput in Level 2 (m³/h) according to EN 61591 | 320 |
| Air throughput in Level 3 (m³/h) according to EN 61591 | 415 |
| Air throughput in Booster level 1 (m³/h) according to EN 61591 | 520 |
| Air throughput in Booster level 2 (m³/h) according to EN 61591 | 555 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 | 50 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 | 64 |
| Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 | 69 |
| Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 | 75 |
| Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-3 | 76 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 | 37 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 | 50 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 | 56 |
| Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 61 |
| Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 62 |
SAFETY
| Safety shut-off | |
| Single-ply safety glass (ESG) |

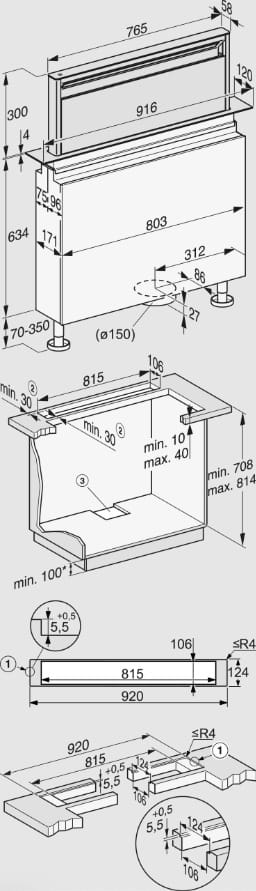

TECHNICAL DATA
| Canopy width in in. (mm) | 916 |
| Depth of hood canopy in in. (mm) | 170 |
| Net weight in kg | 34 |
| Length of supply lead in m | 1.50 |
| Standard plug fitted | |
| Total rated load in kW | 0.25 |
| Voltage in V | 230 |
| Fuse rating in A | 10 |
| Frequency in Hz | 50 |
| Number of phases | 1 |
INSTALLATION NOTES
| Diameter of extraction ducting connection in mm | 150 |
| Optimal combination with hob | KM 7684 FL; KM 7689 FL |
| Combination with WiFi-enabled Miele hob | recommended |
Discover the Miele DAD4841 92cm Downdraft Extractor in Obsidian Black on KDH Electrical. Obsidian Black Finish Miele Downdraft Extractor – Duct Out or Recirculation (sold separately), Touch Control Operation, Long-life Filter, Run-On function, Filter Indicator & Noise Rating of just 76dB(A) with Energy Rating A. Stainless Steel (10-ply) Grease Filter – Can be cleaned in Dishwasher. Powerful – 640 m3/h on booster setting. Energy Efficient – LED Lighting. Miele CleanCover – Easy cleaning & Protects electrical components + motor. Miele@Home – Make your life smart; connect up all your Miele appliances using your smart devices.
LONGLIFE AIRCLEAN FILTER – A completely odour-free kitchen
Thanks to the reactivatable active charcoal filter, odours are efficiently removed inside the oven. Alternatively, these charcoal filters can be purchased as optional accessories for many wall-mounted and island cooker hoods.
RUN-ON FUNCTION – Automatic fan run-on
The automatic fan run-on ensures the full extraction of steam and odours still in the air after cooking. The cooker hood can be set to switch off automatically after 5 or 15 minutes.
EDGE EXTRACTION – Decorative panels instead of metal grease filters
In cooker hoods with edge extraction panels, the commercial-looking metal grease filters are hidden behind a decorative cover. The cooking vapours are drawn in at the outer edges.
CON@CTIVITY (Miele@Home) – Automatic operation for intelligent fan control
Thanks to the Con@ctivity automatic function, the cooker hood can communicate with the hob below: the settings selected on the hob are transmitted to the controls on the cooker hood. Your Miele cooker hood then uses this data to automatically select the correct fan setting, ensuring the optimum room climate at all times. Communication is established between the cooker hood and hob via WiFi.
FILTER INDICATOR – Countdown time conveniently in view
If the grease or active charcoal filter of your Miele cooker hood is saturated, it is indicated by a lit-up red LED. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.

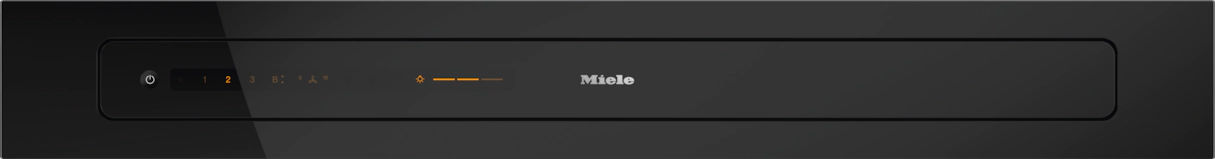

SMARTCONTROL – Elegant touch controls
With its colour and operating principle, the new, elegant Miele touch control perfectly matches Miele hobs. When switched off, only the On/Off icon is visible. Moreover, only the active settings are brightly illuminated; all others are dimmed. Basic functions, such as the run-on time, can be conveniently set at the touch of a finger. Perfect for use with Con@ctivity and the Miele app.
STAINLESS STEEL GREASE FILTERS (10-LAYER) – Easy to use and effective against grease
Miele cooker hoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your hob from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discolouration occurs from being cleaned in the dishwasher and they retain their stunning appearance.
MIELE CLEANCOVER – Convenience and safety in detail
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail – for your convenience and safety.
ECO MOTOR – The heart of every cooker hood
The heart and soul of every cooker hood is the motor. Some Miele cooker hoods feature ECO motors which work up to 50 % more economically than conventional motors. They are also very quiet but still as powerful as the motors in other Miele cooker hoods.
SAFETY SWITCH-OFF – Always on the safe side
The cooker hood will switch off automatically after 10 hours. This ensures maximum safety even in the event of operating errors.
| Weight | 34 kg |
|---|---|
| Dimensions | H: 63.8 x W: 91.6 x D: 17 |
| Brand | Miele |
| Colour | Black |
| Energy Rating | A |
| Extraction Type | Recirculation or Duct Out |
| Noise Level (dB) | 76 |
| Programmes | 4 |
| Smart Appliance | Yes |
| SKU | DAD4841 |
| GTIN | 4002516761679 |
