Miele DAH4970 Sienna 90cm Wall Extractor Hood in Bronze

Product Code: DAH4970-PABO
GET 5% OFF
Auto-Applied At Checkout!
5% OFF WITH "
TAKE5
"
CLICK TO COPY

£2,464.00

Or 3 payments of £821.33 with
Monthly, Interest Free
Seen it cheaper?
In Stock
2 Year Warranty
Delivery From 3 - 7 Working Days*
Instalment plans available from
£821.33 per month
BUY NOW
Need help? Call us on 01622 541312
Google reviews Link

FREE UK Delivery

On all orders over £300
3 to 7 Working Days*
Express/Nominated Day Delivery Options Available on Selected Stock*
*Available delivery dates depend on postcode & stock availability.

Additional Services**

Installation from £40
Packaging Recycling from £5
Appliance Removal from £25
**Installation & Recycling services are available but depend on postcode.
recirculation-or-duct-out
Extraction Type
50 DB
Noise Rating
Energy Rating
yes
Smart Appliance
Overview
Specification
Detail

Miele
 DAH4970-PABO

  • Bronze Finish Miele Extractor Hood – 3+2 Intensive Speed, 875m3/h Max Capacity, Duct Out or Recirculation (sold separately), Touch control operation, Run-On Function, Filter Indicator & Noise Rating of just 50dB(A) with Energy Rating A++.
  • Stainless Steel (10-ply) Grease Filter – Can be cleaned in Dishwasher.

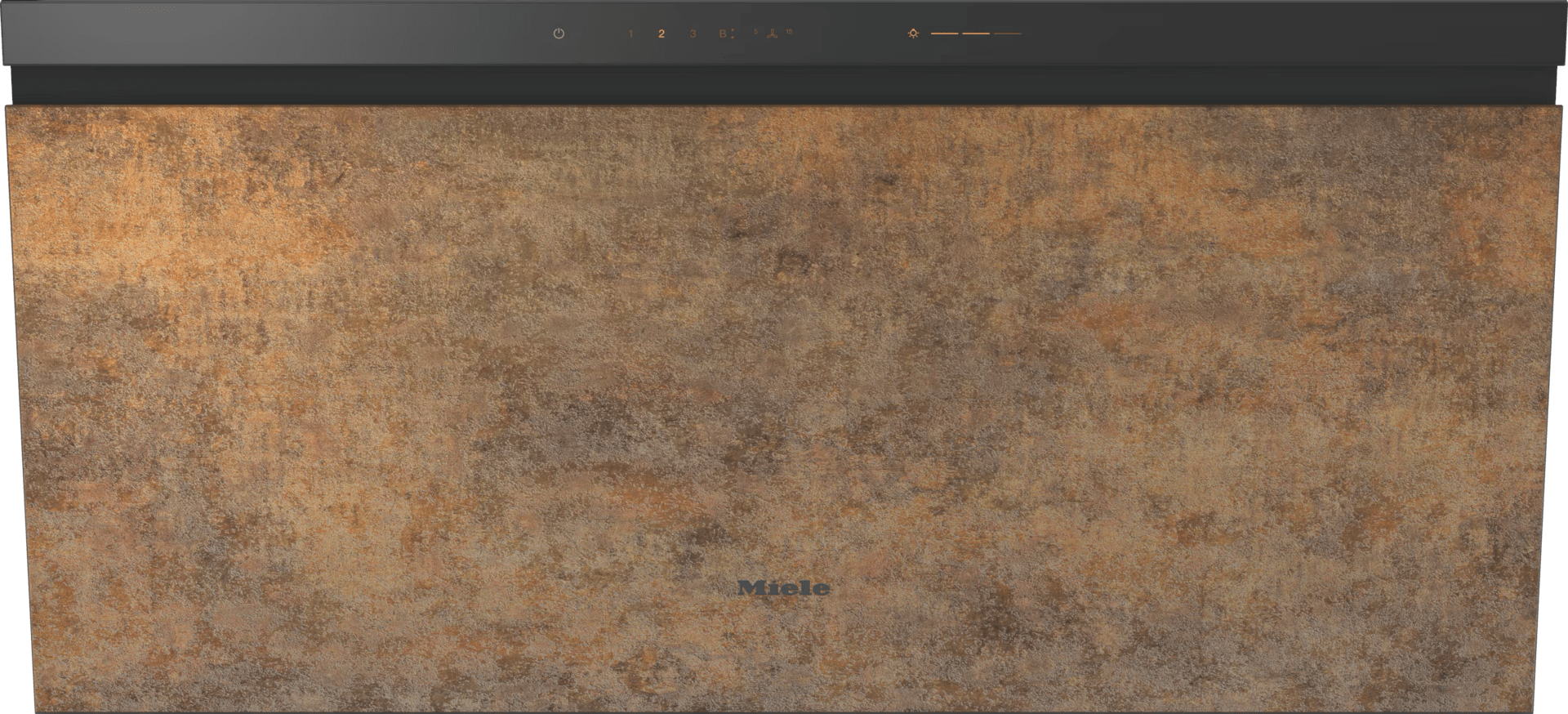

  • SiennaDesign panel with special bronzed-look surface.
  • Miele CleanCover – Easy cleaning & Protects electrical components + motor.

Miele
Model DAH4970-PABO Key Features

SPECIFICATION

CONSTRUCTION TYPE

Wall mounted cooker hood

OPERATING MODES

Type of air guideCan be retrofitted
Active charcoal filter (order separately)DKF 29 charcoal filter

DESIGN

ColourBronze patina
Edge extraction

USER CONVENIENCE

Miele@home
Automatic function Con@ctivity
Electronic controls
Touch-on-glass controls
ON/OFF switch
Power levels (number without Booster level)3
Run-on time 5/15 min.
Grease filter saturation indicator
Grease filter saturation indicator programmable
Active charcoal filter saturation indicator programmable
Silence package

EFFICIENCY AND SUSTAINABILITY

Energy efficiency class (A+++ to D)A++
Annual energy consumption in kWh/year28.20
Fluid dynamic efficiency classA
Lighting efficiency classA
Grease filtering efficiency classD
PowerManagement system

CLEANING AND CARE

Easy-to-clean canopy interior – CleanCover

FILTER SYSTEM

Number of dishwasher-safe stainless steel grease filters (10-ply)2

LIGHTING

LED
Number x W1 x 3,2 W
Light intensity in Lx260 lx
Colour temperature in K3500 Kelvin
Dimmer function

FAN

Dual-action blower
DC motor

EXHAUST AIR

Air throughput in Level 1 (m³/h) according to EN 61591215
Air throughput in Level 2 (m³/h) according to EN 61591315
Air throughput in Level 3 (m³/h) according to EN 61591415
Air throughput in booster level 1 (m³/h)660
Air throughput in booster level 2 (m³/h)875
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-338
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-345
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-350
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-361
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-368
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1324
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1331
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1336
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1347
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-1354

RECIRCULATION

Air throughput in Level 1 (m³/h) according to EN 61591175
Air throughput in Level 2 (m³/h) according to EN 61591275
Air throughput in Level 3 (m³/h) according to EN 61591430
Air throughput in booster level 1 (m³/h)625
Air throughput in booster level 2 (m³/h)720
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-346
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-353
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-364
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-373
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-376
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1332
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1339
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1350
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1359
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-1362

SAFETY

Safety shut-off
Single-ply safety glass (ESG)

TECHNICAL DATA

Overall height for vented and external in in. (mm)
830
Overall height for extraction mode and external mode cooker hoods in mm
1210
Overall height for recirculation in in. (mm)
420
Overall height for recirculation mode cooker hoods in mm
420
Canopy width in in. (mm)
898
Canopy height in in. (mm)
420
Depth of hood canopy in in. (mm)
381
Minimum height above electric hobs in mm
450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm
650
Net weight in kg
18
Length of supply lead in m
1.30
Standard plug fitted
Total rated load in kW
0.22
Voltage in V
230
Fuse rating in A
10
Frequency in Hz
50
Number of phases1
1

INSTALLATION NOTES

Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm150

ACCESSORIES INCLUDED

Non-return flap

EAN

4002516802921



Discover the Miele DAH4970 Sienna 90cm Wall Extractor Hood in Bronze on KDH Electrical. Bronze Finish Miele Extractor Hood – 3+2 Intensive Speed, 875m3/h Max Capacity, Duct Out or Recirculation (sold separately), Touch control operation, Run-On Function, Filter Indicator & Noise Rating of just 50dB(A) with Energy Rating A++. Stainless Steel (10-ply) Grease Filter – Can be cleaned in Dishwasher. SiennaDesign panel with special bronzed-look surface. Powerful – 875 m3/h on booster setting. Energy Efficient – LED Lighting. Miele CleanCover – Easy cleaning & Protects electrical components + motor. Miele@Home – Make your life smart; connect up all your Miele appliances using your smart devices with Con@ctivity.



Con@ctivity

Thanks to the Con@ctivity automatic function, the cooker hood can communicate with the hob below: the settings selected on the hob are transmitted to the controls on the cooker hood. Your Miele cooker hood then uses this data to automatically select the correct fan setting, ensuring the optimum room climate at all times. Communication is established between the cooker hood and hob via WiFi.

Stainless steel grease filters (10-layer)

Miele cooker hoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your hob from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discolouration occurs from being cleaned in the dishwasher and they retain their stunning appearance.

Silence

Efficient and very quiet. The motor, chimney and cooker hood canopy are equipped with special insulation for effective sound-proofing. You can have a normal conversation even with high air throughput.

Miele CleanCover

Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail – for your convenience and safety.

ECO motor

The heart and soul of every cooker hood is the motor. Some Miele cooker hoods feature ECO motors which work up to 50 % more economically than conventional motors. They are also very quiet but still as powerful as the motors in other Miele cooker hoods.

SmartControl

With its colour and operating principle, the new, elegant Miele touch control perfectly matches Miele hobs. When switched off, only the On/Off icon is visible. Moreover, only the active settings are brightly illuminated; all others are dimmed. Basic functions, such as the run-on time, can be conveniently set at the touch of a finger. Perfect for use with Con@ctivity and the Miele app.

Additional information

DimensionsH: 83 x W: 89.8 x D: 38.1
Brand

Miele

Colour

Bronze

Energy Rating

A++

Extraction Type

Recirculation or Duct Out

Noise Level (dB)

50

Programmes

4

Smart Appliance

Yes

SKUDAH4970-PABO
GTIN4002516802921
