SPECIFICATION
CONSTRUCTION TYPE
| Island cooker hood |
OPERATING MODES
| Type of air guide | Convertible |
DESIGN
| Colour | Stainless steel |
USER CONVENIENCE
| Electronic controls |
EFFICIENCY AND SUSTAINABILITY
| Energy efficiency class (A+++ to D) | A |
| Annual energy consumption in kWh/year | 51.80 |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | A |
FILTER SYSTEM
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 3 |
LIGHTING
| Number x W | 4 x 3 W |
| Light intensity in Lx | 500 lx |
| Colour temperature in K | 3000 Kelvin |
FAN
| Dual-action blower | |
| AC motor |
EXHAUST AIR
| Air throughput in Level 1 (m³/h) according to EN 61591 | 280 |
| Air throughput in Level 2 (m³/h) according to EN 61591 | 330 |
| Air throughput in Level 3 (m³/h) according to EN 61591 | 400 |
| Air throughput in booster level 1 (m³/h) | 650 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 | 48 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 | 53 |
| Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 | 57 |
| Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 | 69 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 | 31 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 | 35 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 | 39 |
| Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 51 |
RECIRCULATION
| Air throughput in Level 1 (m³/h) according to EN 61591 | 190 |
| Air throughput in Level 2 (m³/h) according to EN 61591 | 270 |
| Air throughput in Level 3 (m³/h) according to EN 61591 | 330 |
| Air throughput in Booster level 1 (m³/h) according to EN 61591 | 460 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 | 57 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 | 62 |
| Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 | 66 |
| Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 | 73 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 | 40 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 | 45 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 | 49 |
| Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 56 |
SAFETY
| Safety shut-off |
TECHNICAL DATA
| 690–990 | |
| 750–1060 | |
| Overall height for vented and external in in. (mm) | 690 |
| Overall height for extraction mode and external mode cooker hoods in mm | 990 |
| Overall height for recirculation in in. (mm) | 750 |
| Overall height for recirculation mode cooker hoods in mm | 1060 |
| Canopy width in in. (mm) | 898 |
| Canopy height in in. (mm) | 70 |
| Depth of hood canopy in in. (mm) | 598 |
| Minimum height above electric hobs in mm | 450 |
| Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm | 650 |
| Net weight in kg | 34 |
| Length of supply lead in m | 0 |
| Hard-wired connection | |
| Total rated load in kW | 0.23 |
| Voltage in V | 230 |
| Fuse rating in A | 10 |
| Frequency in Hz | 50 |
| Number of phases | 1 |
INSTALLATION NOTES
| Extraction ducting connection at top | |
| Diameter of extraction ducting connection in mm | 150 |
| Telescopic chimney |
ACCESSORIES INCLUDED
| Non-return flap |
EAN
| 4002516585794 |

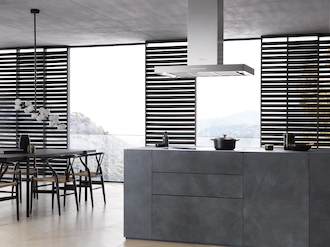

Discover the Miele PUR98D 90cm Island Extractor Hood in Stainless Steel on KDH Electrical. Clean Steel Finish Miele Island Extractor Hood – Duct Out or Recirculation (sold separately), Button Control Operation & Noise Rating of just 73dB(A) with Energy Rating A. Stainless Steel (10-ply) Grease Filter – Can be cleaned in Dishwasher. Powerful – 650 m3/h on booster setting. Energy Efficient – LED Lighting. Miele CleanCover – Easy cleaning & Protects electrical components + motor.
STAINLESS STEEL GREASE FILTERS (10-LAYER) – Easy to use and effective against grease
Miele cooker hoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your hob from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discolouration occurs from being cleaned in the dishwasher and they retain their stunning appearance.
MIELE CLEANCOVER – Convenience and safety in detail
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail – for your convenience and safety.
SAFETY SWITCH-OFF – Always on the safe side
The cooker hood will switch off automatically after 10 hours. This ensures maximum safety even in the event of operating errors.
| Weight | 34 kg |
|---|---|
| Dimensions | H: 75 x W: 89.8 x D: 59.8 |
| Brand | Miele |
| Colour | Stainless Steel |
| Energy Rating | A |
| Extraction Type | Recirculation or Duct Out |
| Noise Level (dB) | 73 |
| Programmes | 4 |
| Smart Appliance | No |
| SKU | PUR98D |
| GTIN | 4002516585794 |
