SPECIFICATION
| Programs / Functions | Intensive/turbo setting: when extra fast extraction is required. 24h: When selected this function refreshes the air for c. 10 minutes every hour over a 24 hour period, at minimum speed and an imperceptible noise level. Switch off automatically: A special setting, to run after the end of cooking for a pre-set time and then switch off automatically. Connection between hob and hood |
| No. of speeds | 3 |
| Intensive speed | Yes |
| 24h air filter function | Yes |
| Time-setting options | Automatic switch-off |
| Auto-vent 2.0 | Yes |
| Type | Perimeter extraction panels: very efficient and aid noise reduction. |
| Product family | Hood |
| Hood Type | Decorative wall hood |
| Extraction | Extraction |
| Electronic control | Yes |
| Perimeter extraction | Yes |
| EAN code | 8017709305789 |
| Aesthetics | Black with Copper finishing, Dolce Stil Novo, Angled design, Glass material, Black glass type |
| Controls | Touch control back-lighted White, LED color: White |
| Technical Features | Dimmering Lights. Grease and charcoal filters. Tunable white from warm to cold lighting. Warning light(s) for filter maintenance. |
| No. of lights | 2 |
| Light type | LED |
| Light Power | 2.1 W |
| Dimmer mode | Yes |
| Light color temperature range | 2700° – 4000°K |
| Free outlet maximum capacity | 820 m³/h |
| Motor power | 275 W |
| No. of filters | 2 |
| Anti-grease filters | Stainless steel |
| Charcoal filters included | Yes |
| Filter replacement indicator | Yes |
| Minimum distance from GAS hob | 650 mm |
| Minimum distance from ELECTRIC hob | 450 mm |
| Vent outlet | 150 mm |
| Non return valve | Yes |
| Energy efficiency class | A+ |
| Fluid Dynamic Efficiency class | A |
| Grease Filtering Efficiency Class | E |
| Lighting Efficiency Class | A |
| Annual Efficiency Consumption | 42 kWh/a |
| Fluid Dynamic Efficiency | 35.6 |
| Lighting Efficiency | 35.5 lux/W |
| Grease Filtering Efficiency | 64.2 % |
| Air flow at minimum speed | 265 m³/h |
| Air flow at maximum speed | 621 m³/h |
| Air flow at boost speed | 777 m³/h |
| Noise at minimum speed | 47 dBA |
| Noise at maximum speed | 67 dBA |
| Noise at boost speed | 70 dBA |
| Power Consumption in Off mode | 0.49 W |
| Power consumption in stand-by mode | 0.99 W |
| Time increase factor | 0.7 |
| Energy Efficiency Index | 41.3 |
| Measured air flow at best efficiency point | 400 m³/h |
| Measured air pressure at best efficiency point | 485 Pa |
| Measured electric power input at best efficiency point | 151 W |
| Nominal Power consumption of the light system | 4 W |
| Average illumination on cooking surface | 142 lux |
| Sound power level at highest setting | 67 dBA |
| Electrical Connection | Plug: Not present, Electrical connection rating: 279 W, Voltage: 220-240 V, Frequency: 50-60 Hz, Power supply cable length: 1500 mm |
| Speed 1 | Extraction: 265 m³/h, Noise: 47 dBA, Power: 160 W |
| Speed 2 | Extraction: 391 m³/h, Noise: 55 dBA, Power: 212 W |
| Speed 3 | Extraction: 621 m³/h, Noise: 66 dBA, Power: 248 W |
| Intensive speed | Extraction: 777 m³/h, Noise: 70 dBA, Power: 276 W |
| Logistic Information | Dimensions: 459x895x439 mm, Width: 895 mm, Depth: 439 mm, Height: 459 mm, Net weight: 20 kg, Gross weight: 24.7 kg |
| Packing dimensions | 1040x560x550 mm |
| Type of packaging | Cardboard |
| Packaging composition | Paper & cardboard: 3.702 kg, Polystyrene: 1.530 kg, Wood: 0.000 kg, Plastic: 0.091 kg |

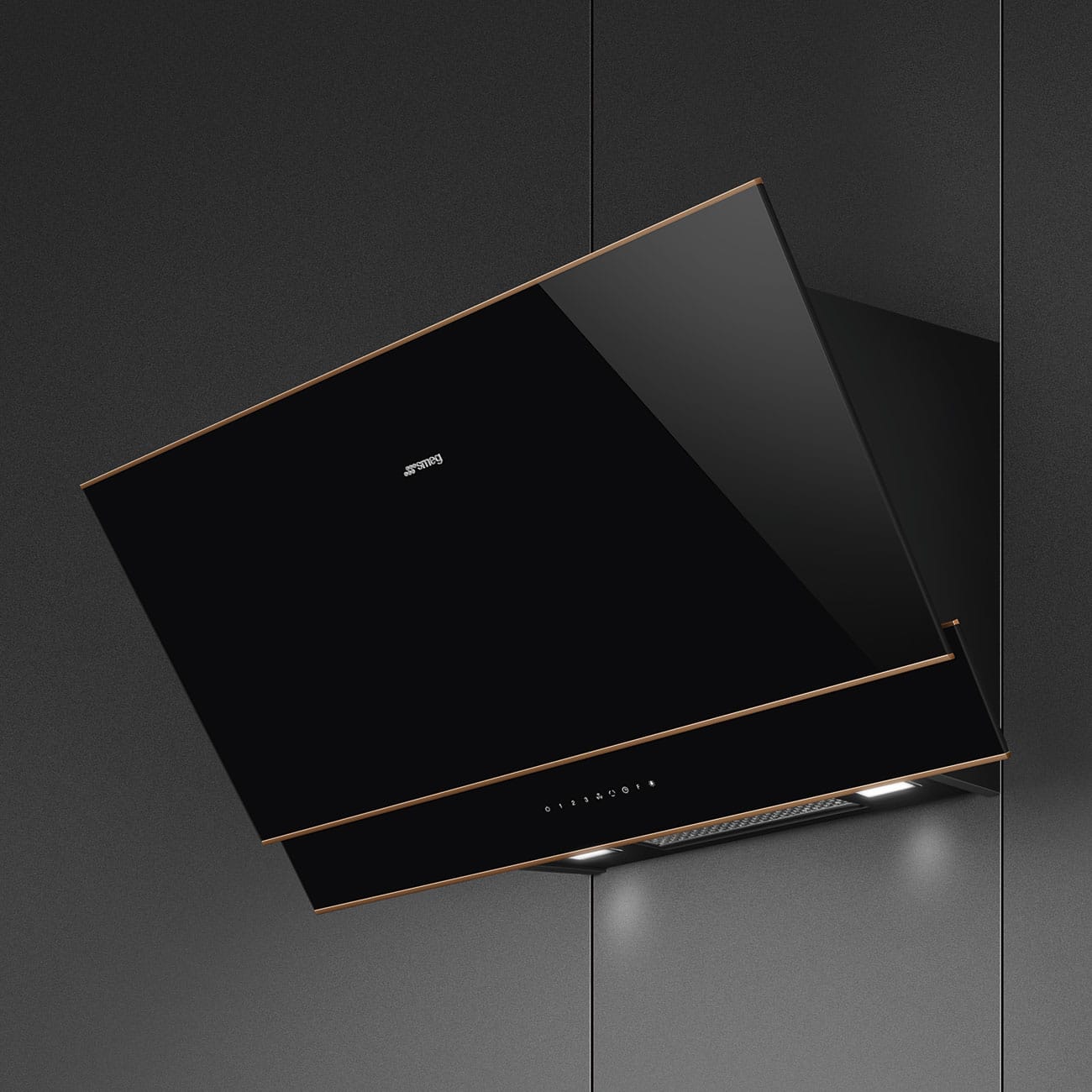

Discover the Smeg KV694R Universal 90cm Wall Extractor Hood in Black on KDH Electrical. Black Finish Smeg Extractor Hood – 3+1 Intensive Speeds, Max 621 m³/h / Intensive 777 m³/h Capacity, Duct Out, AutoSwitch Off, Touch Control Operation, Energy Rating A+ with a Noise Rating 67dB(A). Auto-Vent 2.0 – Fan speed automatically adjusts to power settings on hob. 3 Speeds + Intensive Speed Function – Remove even the strongest odours efficiently. LED Lights – Illuminate your hob area with efficiently bright lighting. CleanAir – 24hr air filtering system purifies the air in your home even when you’re not cooking.
The Smeg KV694R 90cm Wall Extractor Hood is a stylish and powerful addition to any modern kitchen, designed to complement your cooking space both in looks and performance. Finished in sleek black glass with elegant copper detailing, this vertical extractor hood from Smeg’s Dolce Stil Novo range not only looks the part but offers an exceptional range of smart features to make kitchen life easier and cleaner.
Thanks to its Auto-Vent 2.0 technology, the hood uses Bluetooth to connect directly to compatible Smeg hobs. As you start cooking, the hood automatically adjusts its fan speed based on the hob’s temperature and power settings, ensuring the air stays fresh without you having to lift a finger. This clever system continuously adapts as you cook, offering hands-free convenience and optimum air quality.
The hood offers three regular speeds and an additional intensive setting, which boosts extraction power up to 777 m³/h. This means whether you’re frying, searing or simmering a particularly aromatic meal, strong cooking odours are dealt with swiftly and efficiently. Even at its maximum setting, the noise level remains manageable, topping out at 67dB(A).
Beyond extraction power, this Smeg hood also takes care of the air in your home with its CleanAir function. This feature keeps the air fresh even when you aren’t cooking by running for 10 minutes every hour at a low, virtually silent speed. It’s a great way to maintain air quality without high energy consumption.

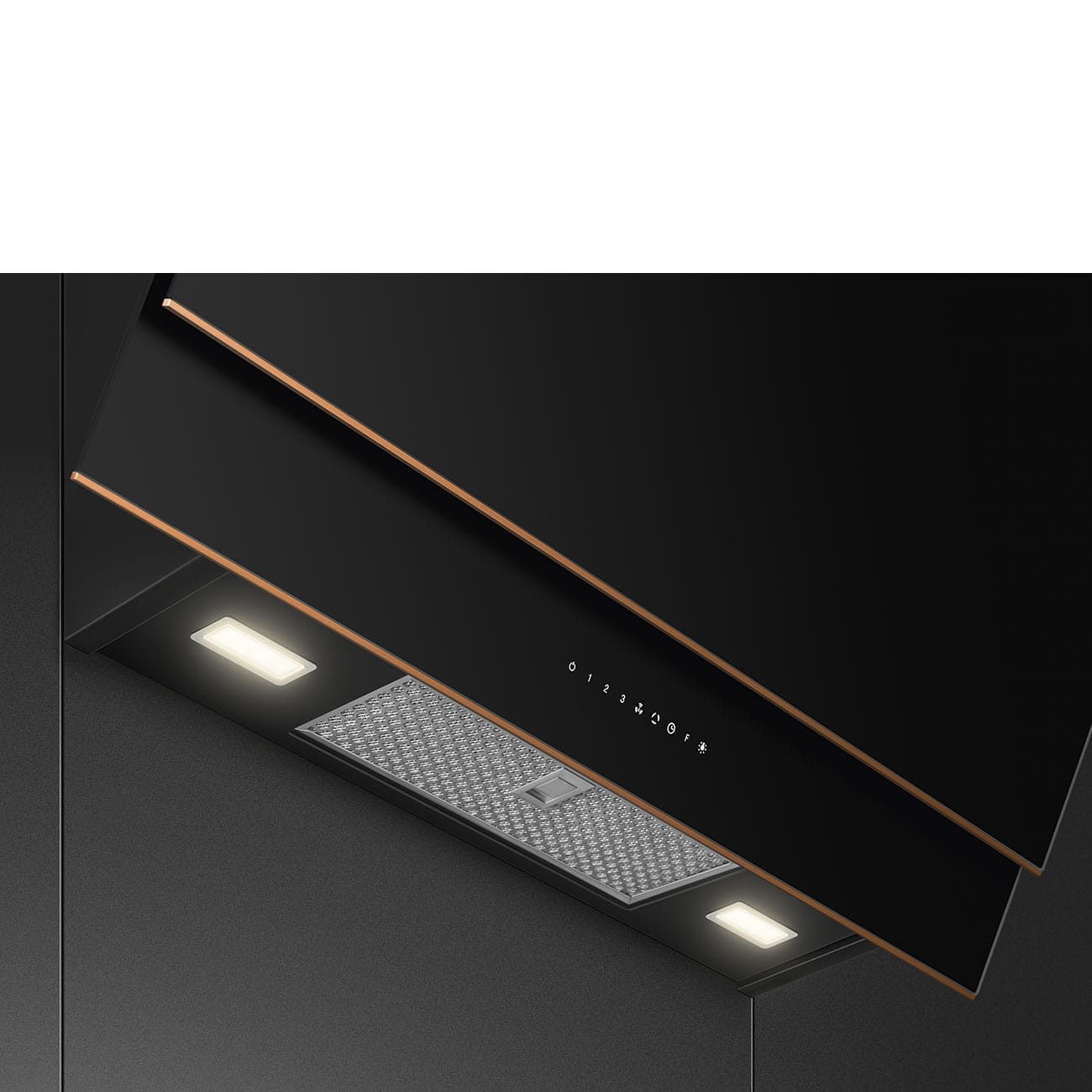

The hood’s lighting has been designed with both function and atmosphere in mind. Energy-efficient LED lights brighten your cooking area perfectly, and the addition of a dimmer function lets you adjust the brightness to suit your mood or task with a simple press and hold of the light button.

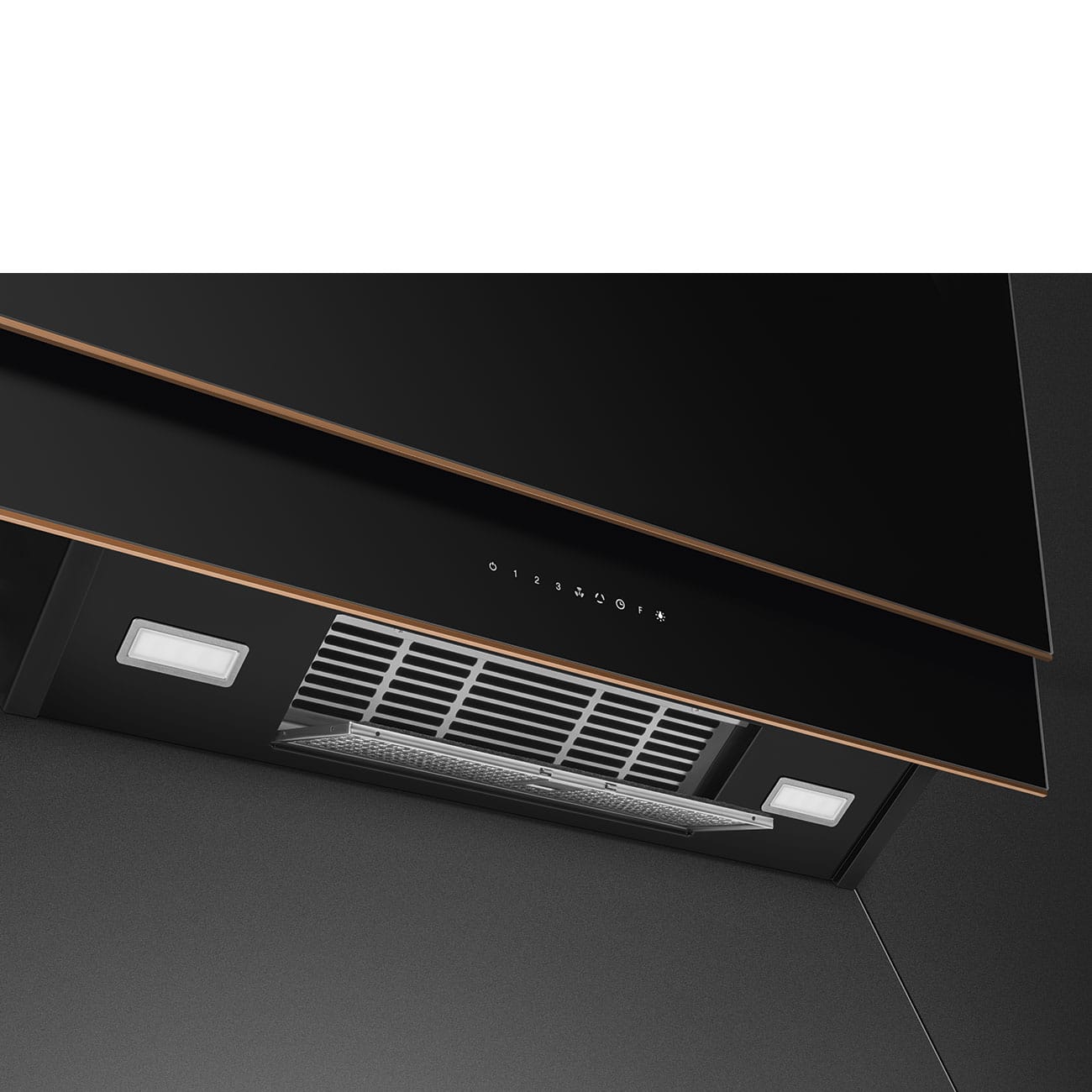

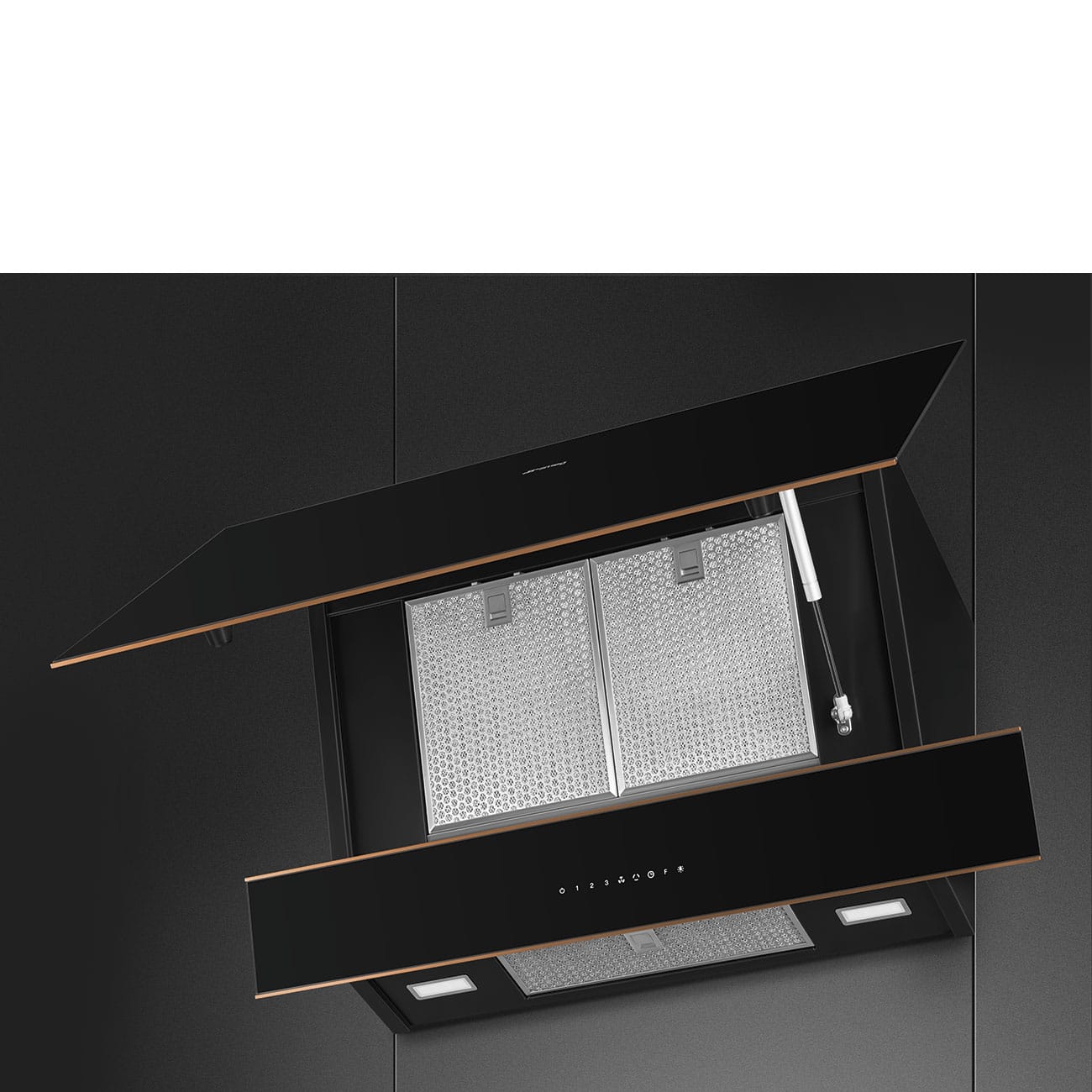

For those looking for a practical extraction solution, the KV694R can be installed for either ducted out extraction or as a recirculating model using optional charcoal filters. Whichever method you choose, maintenance is simple, with a handy filter alert reminding you when it’s time to clean or replace the filters.
With its powerful extraction, smart connectivity, ambient lighting, and striking black glass finish, the Smeg KV694R doesn’t just clear the air — it enhances your entire cooking experience.
| Weight | 20 kg |
|---|---|
| Dimensions | H: 45.9 x W: 89.5 x D: 43.9 |
| Brand | Smeg |
| Colour | Black |
| Energy Rating | A+ |
| Extraction Type | Duct Out |
| Noise Level (dB) | 67 |
| Programmes | 4 |
| Smart Appliance | Yes |
| SKU | KV694R |
| GTIN | 8017709305789 |
