SPECIFICATION
| Type | Ultra-low profile: Installation of product with flat edge – height of 1 mm |
| Product Family | Hob |
| Dimensions | 70/75 cm |
| Type | Mixed |
| Built-in type | Ultra-low profile |
| Power supply | Mixed |
| EAN code | 8017709313562 |
| Total no. of cook zones | 4 |
| No. of gas cook zones | 2 |
| No. of induction cook zones | 2 |
| No. of cooking zones with booster | 2 |
| No. of Flexible zones | 1 |
| Main on/off switch | Yes |
| Power levels | 9 |
| Colour | Black |
| Finishing | Copper |
| Aesthetic | Dolce Stil Novo |
| Glass type | Ceramic Eclipse |
| Material | Glass |
| Controls colour | Black |
| Type of control setting | Multi Slider and Knobs |
| Control knob position | Front |
| No. of controls | 2 |
| Slider | Yes |
| Glass edge | Straight edge |
| Glass on Steel | Yes |
| Pan stands | Cast iron |
| Burners | Smeg Contemporary |
| Burners Material | Brass |
| Serigraphy colour | Grey |
| Grill function | Yes |
| Multizone Option | Yes |
| Auto Multizone | Yes |
| Flexible Zone Type | MultiZone |
| End cooking timer | 2 |
| Pause option | Yes |
| Minute minder | 1 |
| End of cooking alarm | Yes |
| Residual time indicator | Yes |
| Limited Power Consumption Mode | Si Advance |
| Limited Power Consumption Mode in W | 2100 to 3700 (step 100 W) |
| Control Lock / Child Safety | Yes |
| Keep warm automatic function | Yes |
| Bridge option | Yes |
| Quick start | Yes |
| Rapid level selection | Yes |
| Ultra rapid burners | Up to 5kW of power |
| 1st zone position | Front-left |
| 2nd zone position | Rear-left |
| 3rd zone position | Rear-right |
| 4th zone position | Front-right |
| 1st zone type | Gas – AUX |
| 2nd zone type | Gas – UR |
| 3rd zone type | Induction – Multizone |
| 4th zone type | Induction – Multizone |
| 3rd zone dimensions | 18.0 x 23.0 cm |
| 4th zone dimensions | 18.0 x 23.0 cm |
| Right Multizone dimension | 38.5 x 23.0 cm |
| 1st zone power | 1.10 kW |
| 2nd zone power | 3.30 kW |
| 3rd zone power | 2.10 kW |
| 4th zone power | 2.10 kW |
| 3rd zone booster power | 3.60 kW |
| 4th zone booster power | 3.60 kW |
| Overheat protection | Yes |
| Overfill protection | Yes |
| Permanent auto pot detection | Yes |
| Residual heat indicator | Yes |
| Gas Type | G20/G25 natural gas |
| Automatic setting according to pan dimension | Yes |
| Gas safety valves | Yes |
| Automatic Ignition | Yes |
| Automatic switch off when overheat | Yes |
| Automatic switch off when overflow | Yes |
| Protection against accidental start up | Yes |
| Energy consumption zone 3 | 195 Wh/Kg |
| Energy consumption zone 4 | 195 Wh/Kg |
| Gas connection rating | 4400 W |
| Electrical connection rating | 3700 W |
| Current | 16 A |
| Voltage | 220-240 V |
| Frequency | 50/60 Hz |
| Power supply cable length | 120 cm |
| Dimensions (H x W x D) | 45 x 750 x 510 mm |
| Net weight | 14.9 kg |
| Gross weight | 18.8 kg |
| Packaged width | 860 mm |
| Packaged depth | 610 mm |
| Packaged height | 155 mm |
| Packaging type | Cardboard |

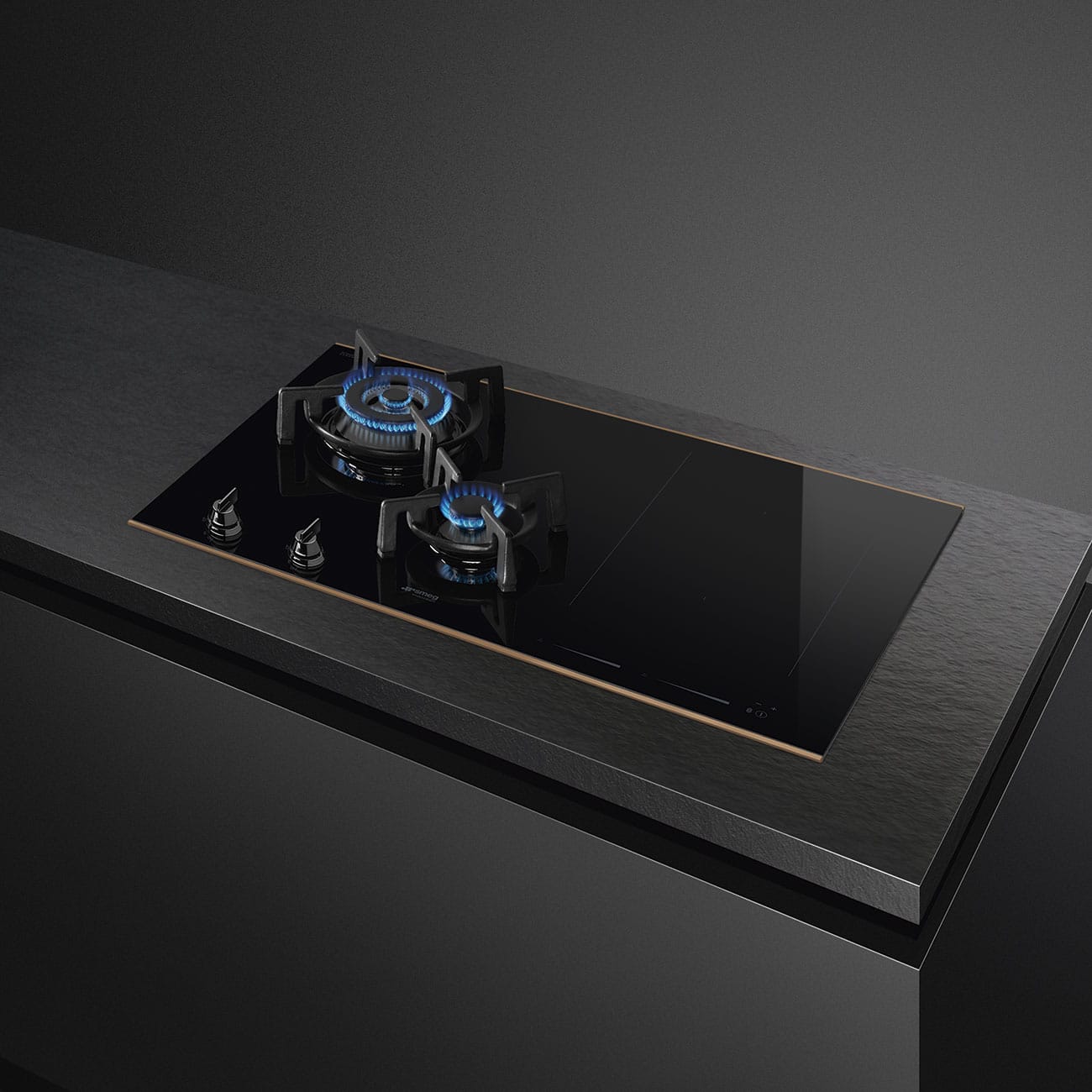

Discover the Smeg PM6743R 75cm 4 Zone Classic Mixed Fuel Gas & Induction Hob in Black Glass on KDH Electrical. Black Glass Finish Smeg Mixed Fuel Hob – 4 Cooking Zones, 2 Gas Burners, 2 Induction Zones, Rotary Dial & Touch Control Operation, Cast Iron Pan Supports, 9 Power Levels, 1 Flex Induction Zone, Timer with Safety Lock. Warming Function – Keep food warm easily. Ultra Low Profile – Very sleek height of 1mm when installed. MultiZone – Two independent cooking zones or combined into a single zone.
The Smeg PM6743R Mixed Fuel Hob is a beautifully designed appliance that perfectly blends style, performance and versatility, making it an excellent choice for anyone who enjoys the freedom to cook with both gas and induction technology. Finished in a sleek black glass with copper detailing, this hob is part of Smeg’s elegant Dolce Stil Novo collection, designed to make a visual statement while offering first-class functionality.
This 75cm wide hob is equipped with four cooking zones — two high-performance gas burners and two advanced induction zones — giving you complete flexibility whether you prefer the traditional feel of gas or the precision of modern induction cooking. The two induction zones can also be combined using Smeg’s MultiZone feature, which allows them to merge into one large cooking area, perfect for accommodating larger pans or griddles. The hob also includes a dedicated flex induction zone, which automatically detects pan size and position, heating only the areas required for optimum energy efficiency.
For day-to-day use, the PM6743R offers practical and intuitive controls. The gas burners are operated via sleek front-mounted rotary knobs, while the induction zones are managed using responsive touch sliders, allowing you to adjust power with ease. There are nine power levels for the induction zones, along with a booster function for when you need intense, immediate heat. Smeg’s Quick Start feature also speeds up the cooking process, bringing your pans to temperature fast, while the warming function ensures cooked food stays hot until you’re ready to serve.
Safety and convenience are at the heart of this hob’s design. It features a child lock, automatic switch-off if a pan boils over or the surface overheats, and residual heat indicators to let you know when zones are still too hot to touch. If you need to step away, the Pause function lets you temporarily halt cooking and then resume later at the same settings.
Beneath its stunning glass surface, the hob is built for durability. The ceramic Eclipse glass not only looks striking but is extremely hard-wearing, able to withstand high temperatures and resist everyday wear and tear. The gas burners are paired with sturdy cast iron pan supports, ensuring stability for pots and pans of all sizes, and the ultra-rapid burner delivers up to 5kW of power for fast boiling or high-heat searing.
Another thoughtful feature is the Auto-Vent 2.0 function, which enables the hob to wirelessly connect to a compatible Smeg cooker hood. The hood will automatically adjust its extraction power based on your hob’s settings, helping to maintain a fresh and comfortable cooking environment without the need for manual adjustment.
Energy-conscious households will also appreciate the Eco-Logic Advance system, which allows you to limit the hob’s total power consumption according to your home’s electrical supply limits, offering peace of mind and better control over your energy use.
For anyone who loves to grill, this hob offers a dedicated grill function when used with Smeg’s optional GRILLPLATE and TPKPLATE accessories, allowing you to sear meat, fish and vegetables to perfection on a non-stick surface without the need for a separate appliance.
Designed to fit neatly into modern kitchens, the Smeg PM6743R offers an ultra-low profile installation with a barely-there height of just 1mm, giving your worktop a seamless, contemporary look. Whether you’re upgrading your current cooking setup or planning a new kitchen, this hob is a smart, stylish and highly practical solution for cooks who demand flexibility without compromise.
| Weight | 14.9 kg |
|---|---|
| Dimensions | H: 4.5 x W: 75 x D: 51 |
| Brand | Smeg |
| Colour | Black |
| Cooking Zones | 4 |
| Smart Appliance | No |
| SKU | PM6743R |
| GTIN | 8017709313562 |
