£2,729.00
SPECIFICATION
Product Family
Cooker
Cooker size
100×60 cm
Hob energy type
Gas
N. of ovens
3
Hob type
Gas
Main oven type
Thermo-ventilated
Type of second oven
Thermo-ventilated
Cleaning system
Vapor Clean
EAN code
8017709241483
AESTHETICS
Colour
Cream
Aesthetics
Victoria
Design
Victoria
Material
Enamelled
Door
With frame
Command panel finish
Enamelled metal
Hob colour
Black enamel
Handle
Smeg Victoria
Controls colour
Stainless steel
Upstand
Yes
Display
electronic 5 buttons
Type of pan stands
Cast Iron
Glass type
Black
Handle Colour
Brushed stainless steel
Control knobs
Smeg Victoria
No. of controls
10
Plinth
Anthracite
PROGRAMS / FUNCTIONS
Traditional cooking functions
Cleaning functions
PROGRAMS / FUNCTIONS AUXILIARY OVEN
Cooking functions cavity 2
1
Traditional cooking functions, cavity 2
PROGRAMME / FUNCTIONS THIRD OVEN
No. of functions third oven
1
OPTIONS MAIN OVEN
Timer
Yes
End of cooking acoustic alarm
Yes
Minimum Temperature
50 °C
Maximum temperature
260 °C
OPTIONS AUXILIARY OVEN
Minimum Temperature
50 °C
Maximum temperature
245 °C
OPTIONS THIRD OVEN
Minimum Temperature
50 °C
Maximum temperature
260 °C
HOB TECHNICAL FEATURES
Total no. of cook zones
6
1st zone position
Front left
2nd zone position
Rear left
3rd zone position
Front centre
4th zone position
Rear centre
5th zone position
Front right
6th zone position
Rear right
1st zone type
Gas – 2UR (dual)
2nd zone type
Gas – AUX
3rd zone type
Gas – AUX
4th zone type
Gas – Semi Rapid
5th zone type
Gas – Semi Rapid
6th zone type
Gas – Rapid
1st zone power
4.20 kW
2nd zone power
1.00 kW
3rd zone power
1.00 kW
4th zone power
1.80 kW
5th zone power
1.80 kW
6th zone power
2.90 kW
Type of gas burners
Standard
Burner caps
Matt black enamelled
Automatic electronic ignition
Yes
Gas safety valves
Yes
MAIN OVEN TECHNICAL FEATURES
Net volume of the cavity
61 litres
Gross volume, 1st cavity
70 l
Cavity material
Easy clean enamel
Shelf positions
4
Type of shelves
Metal racks
No. of lights
1
Light type
Halogen
Light power
40 W
Fan number
1
Cooking time setting
Start and Stop
Door opening
Side opening
Side opening door
Yes
Removable door
Yes
Full glass inner door
Yes
Total no. of door glasses
3
No.of thermo-reflective door glasses
1
Safety Thermostat
Yes
Cooling system
Tangential
Grill type
Electric
Tilting grill
Yes
Grill elememt
1700 W
Large grill – Power
2700 W
Lower heating element power
1200 W
Upper heating element – Power
1000 W
Circular heating element – Power
2000 W
Temperature control
Electro-mechanical
SECOND OVEN TECHNICAL FEATURES
Net volume of the second cavity
84 litres
Cavity material
Easy clean enamel
Shelf positions
9
Type of shelves
Metal racks
No. of lights
1
Light type
Halogen
Light power
40 W
Door opening
Side opening
Side opening door
Yes
Removable door
Yes
Full glass inner door
Yes
Removable inner door
Yes
No. total door glasses
2
No. thermo-reflective door glasses
1
Safety Thermostat
Yes
Cooling system
Tangential
Temperature control
Electro-mechanical
THIRD OVEN TECHNICAL FEATURES
Net volume, 3rd cavity
36 l
Gross volume, 3rd cavity
41 l
Cavity material
Easy clean enamel
Shelf positions
2
Type of shelves
Metal racks
No. of lights
1
Light type
Halogen
Light power
40 W
Door opening
Flap down
Removable door
Yes
Full glass inner door
Yes
Removable inner door
Yes
No. total door glasses
3
No. of thermo-reflective door glasses
1
Safety Thermostat
Yes
Cooling system
Tangential
Grill type
Electric
Tilting grill
Yes
Large grill – Power
2700 W
Temperature control
Electro-mechanical
PERFORMANCE / ENERGY LABEL
Energy efficiency class
A
GAS – Energy consumption in fan-forced convection, first cavity
2.77 MJ
Energy consumption forced air convection (kWh) first cavity
0.77 KWh
GAS – Energy consumption conventional mode, first cavity
3.42 MJ
Energy consumption conventional first cavity (kWh)
0.95 KWh
PERFORMANCE /ENERGY LABEL – SECOND CAVITY
Energy efficiency class, second cavity
B
GAS – Energy consumption in forced air convection, second cavity
3.89 MJ
GAS – Energy consumption in forced air convection, second cavity
1.08 KWh
ELECTRICAL CONNECTION
Nominal power
8900 W
Voltage
220-240 V
Voltage 2 (V)
380-415 V
Frequency
50/60 Hz
Type of electric cable
Yes, Double and Three Phase
Type of electric cable installed
Yes, Single phase
GAS CONNECTION
Gas connection rating (W)
12600 W
Gas Type
G20 Natural gas
LOGISTIC INFORMATION
Dimensions of the product HxWxD (mm)
900x1000x600 mm
Width (mm)
1000 mm
Product Height (mm)
900 mm
Depth (mm)
600 mm
Dimensions of the packed product (mm)
1015X1060X670 mm
Gross weight (kg)
130.300 kg
Net weight (kg)
117.900 kg
FR EXTENTION SINGLE GROUP
Packed width
1060 mm
Packaged depth
670 mm
Height (mm) packed
1015 mm
Maximum stackability
4
Type of packaging
Cardboard
Packaging composition – paper & cardboard (kg)
6.580 kg
Packaging composition – polystyrene (kg)
1.725 kg
Packaging composition – wood (kg)
3.360 kg
Packaging composition – plastic (kg)
0.697 kg

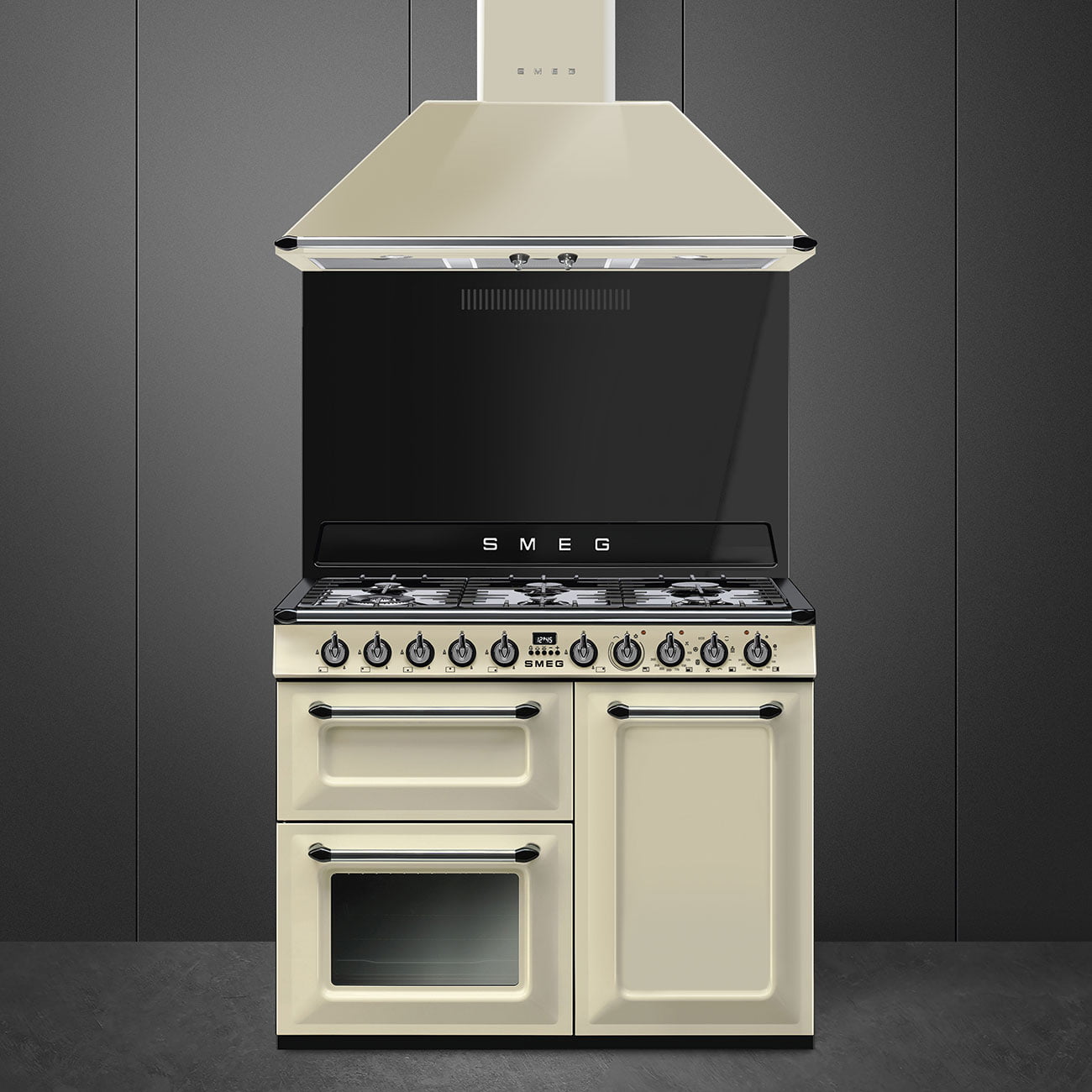

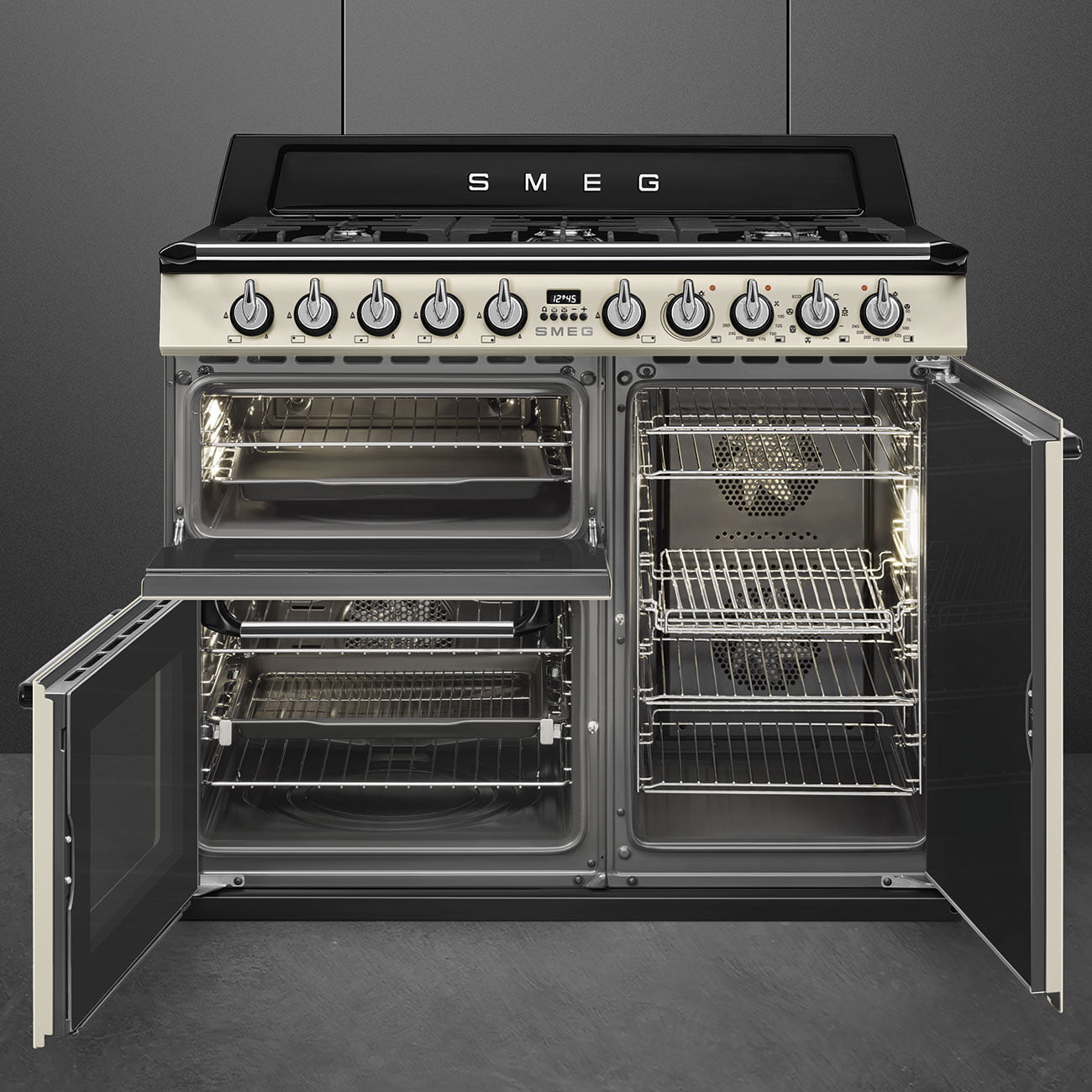

Discover the Smeg TR103P Victoria 100cm Range Cooker with Gas Top in Cream on KDH Electrical. 6 Gas Burners + Cast Iron Pan Supports. Vapor Clean – Cleaning made easy using Steam. Energy Rating A & 186L Total Capacity. 3 Oven Compartments – 1 x 61L Large Oven + 1 x 84L Large Oven + 1 x 36L Grill.
Victoria aesthetic
Inspired by Smeg’s very first ‘Elisabeth’ cooker produced in 1948, the Victoria range perfectly captures the essence of timeless classic design and exclusive aesthetics, thanks to Smeg’s signature 1950’s style branding and premium build quality.
AUXILIARY OVEN
The TR103’s AUXILIARY OVEN (positioned on the right hand side) has a full height side opening door which is internally glazed for energy efficiency. With a net capacity of 84 litres this tall oven is equipped a total of 9 cooking levels, making it ideal for small batch baking and plate warming – in fact you can cook a whole roast dinner just in this tall oven.
GRILL OVEN
The GRILL OVEN (positioned top left) boasts a powerful 2.7kW adjustable grill, and has a 36 litre net capacity alongside 2 cooking levels.
VAPOR CLEAN PROGRAMME
Smeg ovens offer a vapor clean programme designed to generate steam to help release burnt on food from the walls of the oven. Vapour cleaning is straightforward, simply put a little water & detergent into the hollow in the oven base and select the vapour setting.
CLOSED DOOR GRILLING
Closed door grilling allows you to grill with the door closed, keeping cooking smells inside the oven and out of the kitchen to ensure a safe cooking environment and reduced energy consumption.
EASY CLEAN ENAMEL INTERIOR
The enamel finish of the oven cavity has a special antacid lining which helps to reduce the amount of dirt adhering to the surface.
Cooking Functions
Static
Upper and lower element only: a traditional cooking method best suited for single items located in the centre of the oven. the top pf the oven will always be hottest. Ideal for roast, fruit cakes, bread etc.
Circulaire
The combination of the fan and circular element around it gives a hot air cooking method. This provides many benefits including no preheat if cook time is more than 20 minutes, no flavour transfer when cooking different foods at the same time, less energy, and shorter cook times. Good for all types of food.
Turbo
Circulaire with upper and lower elements: The use of the fan with both elements allows food to be cooked quickly and effectively, ideal for large joints that require thorough cooking. It offers a similar result to rotisserie, moving the heat around the food, instead of moving the food itself, enabling any size or shape to be cooked.
ECO
The combination of the grill, fan and lower element is particularly suitable for cooking small quantities of food.
Large Grill
Grill element: Using of grill gives excellent results when cooking meat of medium and small portions, especially when combined with a rotisserie (where possible). Also ideal for cooking sausages and bacon.
Fan Assisted Base
In gas ovens the fan distributes the heat quickly and evenly throughout the oven cavity, avoiding flavour transfer when cooking a number of different dishes at the same time. In electric ovens this combination completes cooking more quickly of foods that are ready on the surface, but that require more cooking inside, without further browning.
| Weight | 117.9 kg |
|---|---|
| Dimensions | H: 90 x W: 100 x D: 60 |
| Brand | Smeg |
| Capacity (L) | 186 |
| Cleaning System | Steam |
| Colour | Cream |
| Cooking Zones | 6 |
| Energy Rating | A |
| Programmes | 8 |
| Smart Appliance | No |
| SKU | TR103P |
| GTIN | 8017709241483 |
